Soft and flexible, hypoallergenic, Polyurethane foam, single leg elevator

size : height 40 cm x length 28 cm x width 39 cm
weight : 1.2 kg

  • description
  • key advantages
  • usage
  • specifications

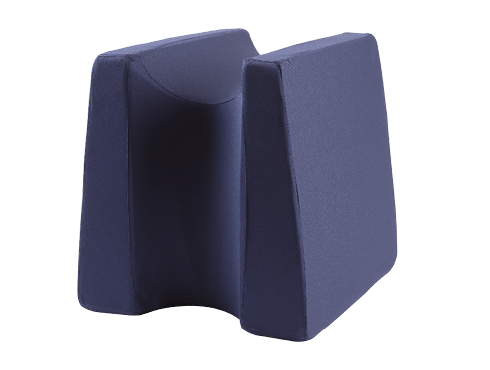

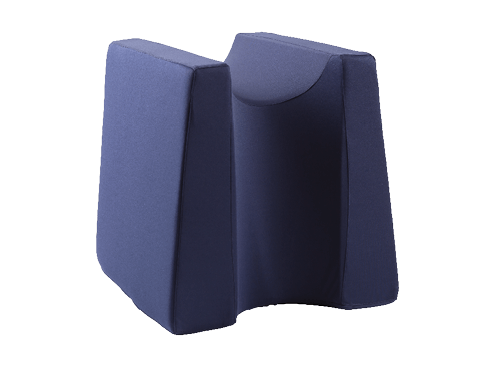

This single leg elevator is made from a soft and flexible, hypoallergenic, polyurethane foam. The foam product has been specifically developed to have very fast recovery characteristics from its compressed storage state. The foam combination of different chemicals has allowed this product to ensure comfort and longevity, and has been individually cut using the CNC programmed laser cut method. This foam product is one that has a ‘spring’ to it, but is still soft. It is designed and moulded into a specific shape to aid support and elevation to a limb intra operatively. The Surgical Leg Elevator consists of two grooved cutouts, an extremity holder. One provides a stable secure host for a patient’s limb in a single leg elevation during surgery; the other allows and provides sufficient space to the surgeon to exercise the procedure. The foam product is covered with a very light anti-static and soft, but durable, skin-friendly fabric, which is completely airtight and waterproof. A pressure vacuum valve is inserted into the product to create a vacuum and compress the product. This makes the product compact, lightweight and easy to travel with. It can be stored in a small space.

This product can sustain the autoclave procedure, which is ideal for multiple client use. This high-quality medical device is environmentally friendly, controls cross infection and makes it easy to perform the surgical procedure.
  • Prevention of swelling
  • Assists in normal blood circulation
  • Prevention of pressure sores
  • Stabilises and secures the leg in a comfortable position during surgery
  • Lightweight
This is a specialised product, which has been scientifically designed as an extremity holder for use in theatre, excellent foot/ankle positioner for podiatric procedures for toes and midfoot cases. The Surgical Leg Elevator is designed to elevate one leg at a time in a comfortable and stable position during surgery or patient preparation.

The product can be used for the following conditions:
  • Popliteal Nerve Block
  • Sciatic Nerve Splitting
  • Popliteal Nerve Splitting
  • Podiatric Procedures
  • Toes and Midfoot Procedure

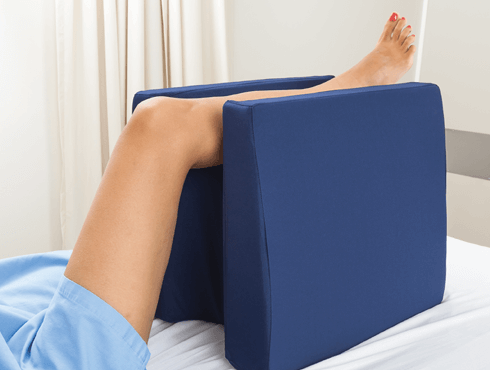

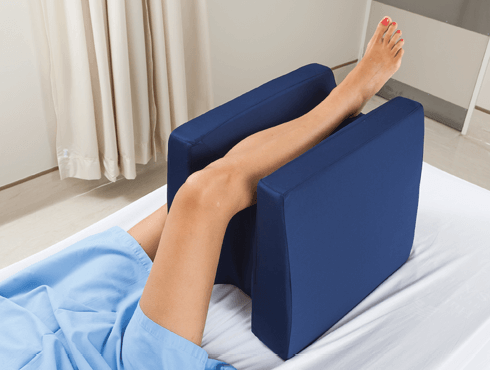

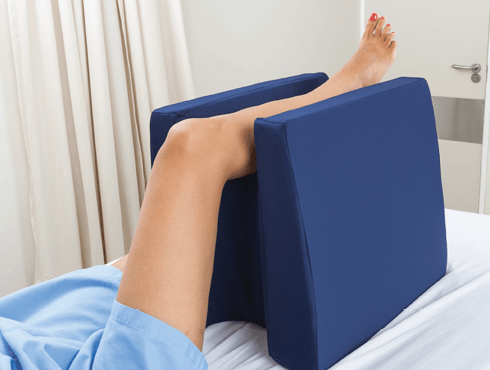

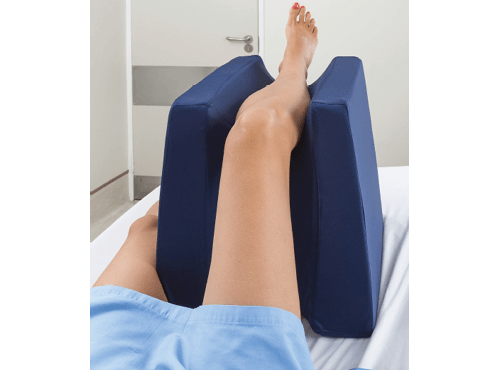

The multifunctional Surgical Leg Elevator is a stable and secure limb support cushion, for during the surgery procedure in theatre. It must be positioned in a supine position underneath the patient’s leg, and has a soft and flexible foam surface contour to position and stabilises the elevated leg. The one cutout area of the Surgical Leg Elevator provides sufficient space to the surgeon to exercise the procedure successfully. It can also be used to raise the lower extremity to prevent swelling or to prevent pressure sores on the lower back. The Surgical Leg Elevator increases blood circulation and aids in healing existing ulcers.
Polyurethane flexible foam (PUR). According to REACH Regulation (EU Regulation 1907/2006EC)
Polyurethane foams have to be considered as ‘articles’. They are identified as industrial polymers. Polyurethane foams are not considered to be hazardous products, nor as preparations of dangerous substances.

Two-way stretch (less risk of pressure sores)
Waterproof (protection of the underlying cushion)
Impermeable to blood and urine  (protection of the underlying cushion from fluid ingress and consequent deterioration of the cushion core)
Breathable (approximately 500g/m²/24h at 37°C/65% R.H. inverted cup method)
Disinfectable textile by just wiping the surface
Washable up to 40°C (reusable)
Tumbler resistant (low heat)
Flame retardant to BS7175 Crib 5 and X-ray transparent
Anti-static to BS2050 (operation theatres)
Medical-grade, vacuum pressure valve.
Commercial product name: Chirulen 1020.
These products are ‘articles’ according to the Regulation (EC) No 1907/2006 (REACH)
Manufactured out of:
Body and Moving Parts: Ultra-high molecular weight polyethylene (PE-UHMW)
CAS number: 9002-88-4
O-Rings: Polybutadiene acrylonitrile rubber (nitrile rubber)
CAS number: 9005-98-5
